Insulation Resistance Device , Intelligent Dual Display Test Device RS2011

Name: Insulation Resistance Device Intelligent Dual Display Test Device RS2011
Brand: RISING
Price: 1 USD

Brand Name : RISING

Model Number : RS2011

Certification : ISO CE

Place of Origin : China

MOQ : 1 SET

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 SET PER Month

Packaging Details : Wooden package

Output voltage : 500V DC

Temperature : 23℃±5℃

Short circuit current : ≥3mA

Size : 230mm×190mm×90mm (L×W×H)

Weight : 2kg

Contact Now

Insulation Resistance Device , Intelligent Dual Display Test Device RS2011

Product Description

Our RS2011 intelligent dual-display insulation resistance tester adopts embedded real-time operation system of industrial single chip microcomputer, with ultra-thin tensile silk header perfectly combined with graphics dot-matrix LCD display. Instruments of this series have many characteristics, such as multiple voltage output levels (500V, 1000V, 2500V and 5000V), large capacity, strong interference resistance, synchronous display of pointer and digit, automatic calculation of various insulation indexes (absorption ration, polarization index), protection against power failure for various measurement results, etc. An ideal instrument to measure the insulation resistance of large capacity power transformer, instrument transformer, generator, high-voltage motor, power capacitance, power cable, surge arrestor, etc.

Feature/Function

Model		RS2011		RS2011
Output voltage		500V DC	1000V DC	2500V DC	5000V DC
Accuracy	Temperature	23℃±5℃
	Insulation resistance	1MΩ-20GΩ	2MΩ-40GΩ	5MΩ-100GΩ	10MΩ-200GΩ
		±5％	±5％	±5％	±5％
	Output voltage	4MΩ-20GΩ	8MΩ-40GΩ	20MΩ-100GΩ	40MΩ-200GΩ
		0-+10％	0-+10％	0-+10％	0-+10％
High voltage short circuit current		≥3mA
Working power supply		8 AA rechargeable batteries, externally equipped with charging adapter
Working temperature and humidity		-10℃-40℃; maximum relative humidity 85%
Storage temperature and humidity		-20℃-60℃; maximum relative humidity 90％
Insulation performance		Maximum resistance is 2000MΩ when voltage between circuit and enclosure is 1000V DC.
Withstand Voltage properties		Duration lasts for 1min when voltage between circuit and enclosure is 2500V AC
Size		230mm×190mm×90mm (L×W×H)
Weight		2kg
Accessory		One set of testing wires, manual, qualification certificate, charging adapter and power wire

Product Tags:

transformer test bench

comprehensive test bench

Best Insulation Resistance Device , Intelligent Dual Display Test Device RS2011 wholesale

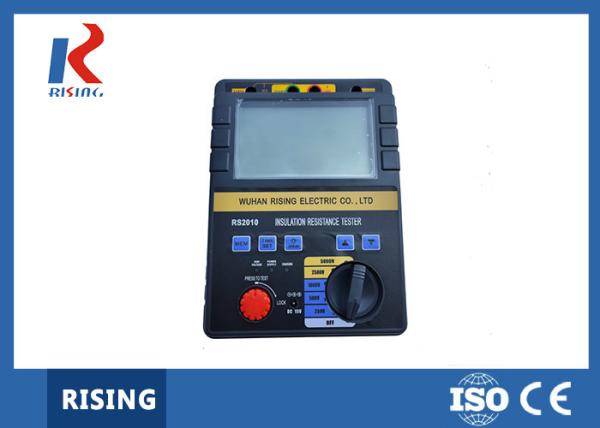

Insulation Resistance Device , Intelligent Dual Display Test Device RS2011 Images
